Color Steel Roof Mountings

Color steel tiles are commonly used in light steel structure buildings, such as standardized factories and warehouses. Light steel structure buildings using lightweight color steel tiles for roofs allow for large spans, making them ideal for large-scale solar panel installations. Urban industrial parks often consist of numerous, large-scale, interconnected standardized factories, frequently capable of housing solar power plants of tens of megawatts at a time.

Color steel tiles are constructed by wrapping foam boards with thin metal sheets, making it difficult to secure the solar panels using traditional methods. Specialized "Clamping Hooks" are required. Using Clamping Hooks does not damage the original structure and prevents roof leaks or overall structural damage.

I. Color Steel Tile

Color steel tile is a profiled sheet made by pressing steel sheets into various corrugated shapes and then applying a colored coating. This material is lightweight, high-strength, and comes in a variety of colors, making it easy to install. It is earthquake-resistant, fireproof, rainproof, long-lasting, and maintenance-free, suitable for industrial or civil buildings, warehouses, special buildings, and roofs of large-span steel structure houses.

II. Application Industrial plant areas typically consist of contiguous standard factory buildings with open, flat roofs. Their large number and area facilitate the large-scale installation of photovoltaic (PV) power generation system components. Generally, a single factory building can support a PV power station with a generating capacity of tens of megawatts. Therefore, Color Steel Roof Mountings are arguably the best choice for large-capacity distributed PV systems.

III. Support Selection PV mounting systems mainly consist of rails and supports, usually available as pre-made or custom-made products. Materials include aluminum alloy, carbon steel, and stainless steel. Aluminum alloy is lightweight, and the rails in the PV panels are made of aluminum alloy.

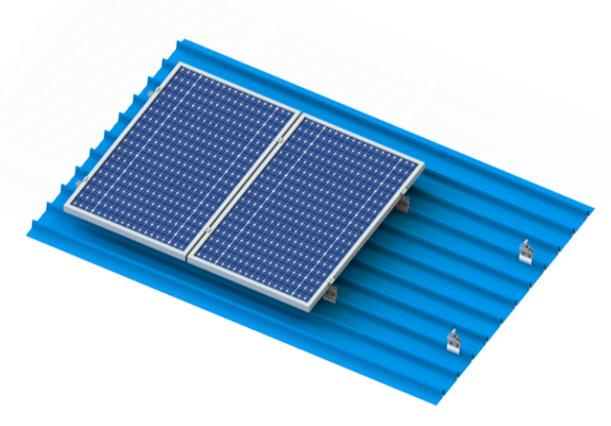

Clamping hooks with corresponding cross-sectional shapes are manufactured to match the corrugated cross-section of the Color steel tile. The clamping hooks are securely fixed to the corrugations using fixing bolts. These are mainly available in standing seam and angled seam types.

Advantages of Clamping Hooks: They do not damage the original structure of the Color Steel Roof Mountings, protecting the overall roof structure and preventing leaks.
